In construction and the steel industry, a frequent question is: “What is the difference between Hot-Dip Galvanized (HDG) steel and Pre-Zinc steel?” While both are zinc-coated to prevent rust, the production processes and resulting performance are very different.

To help you make the right, most cost-effective choice, Siam Steel Galvanizing dives deep into these clear differences.

Understanding the Production Process

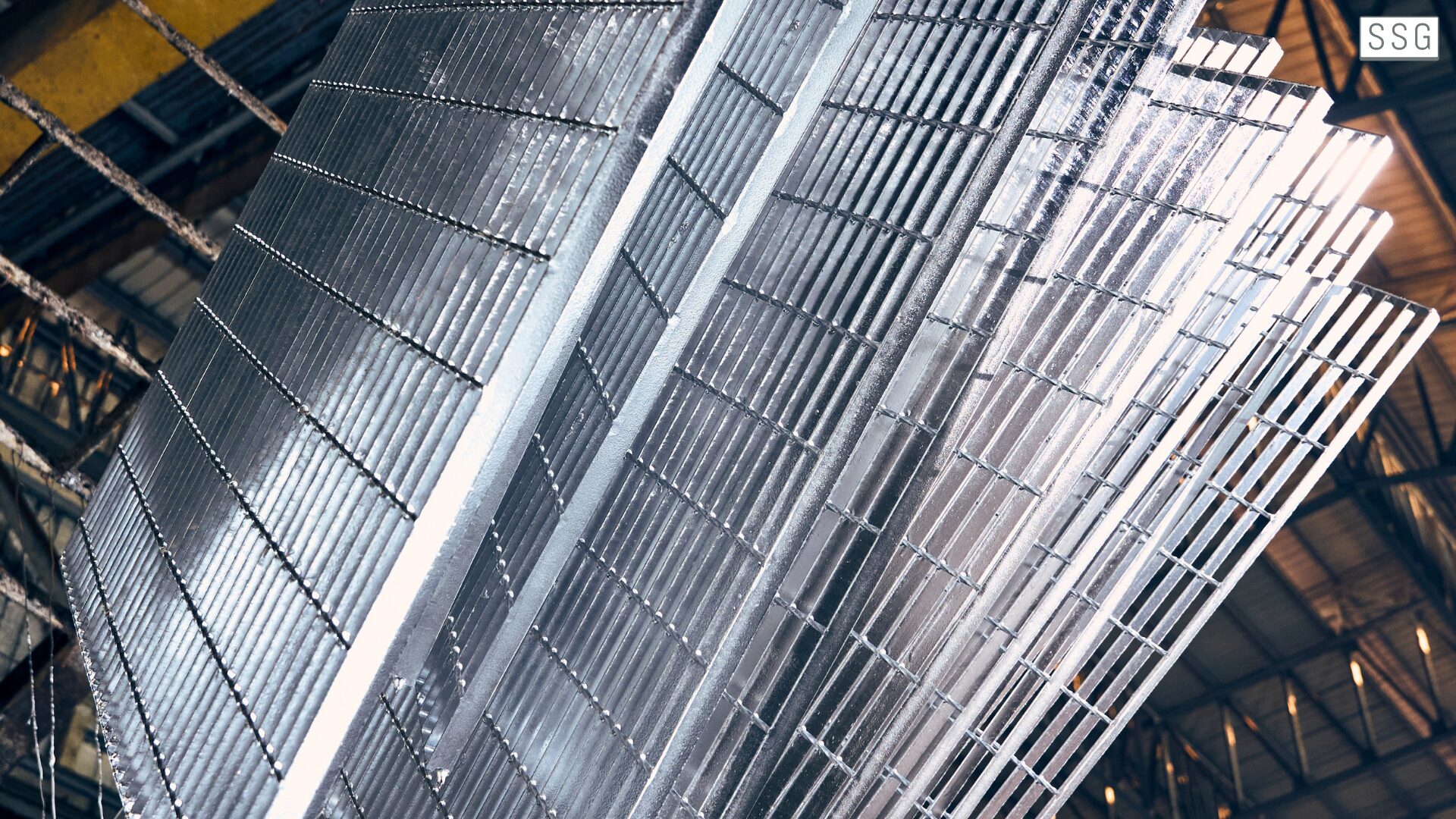

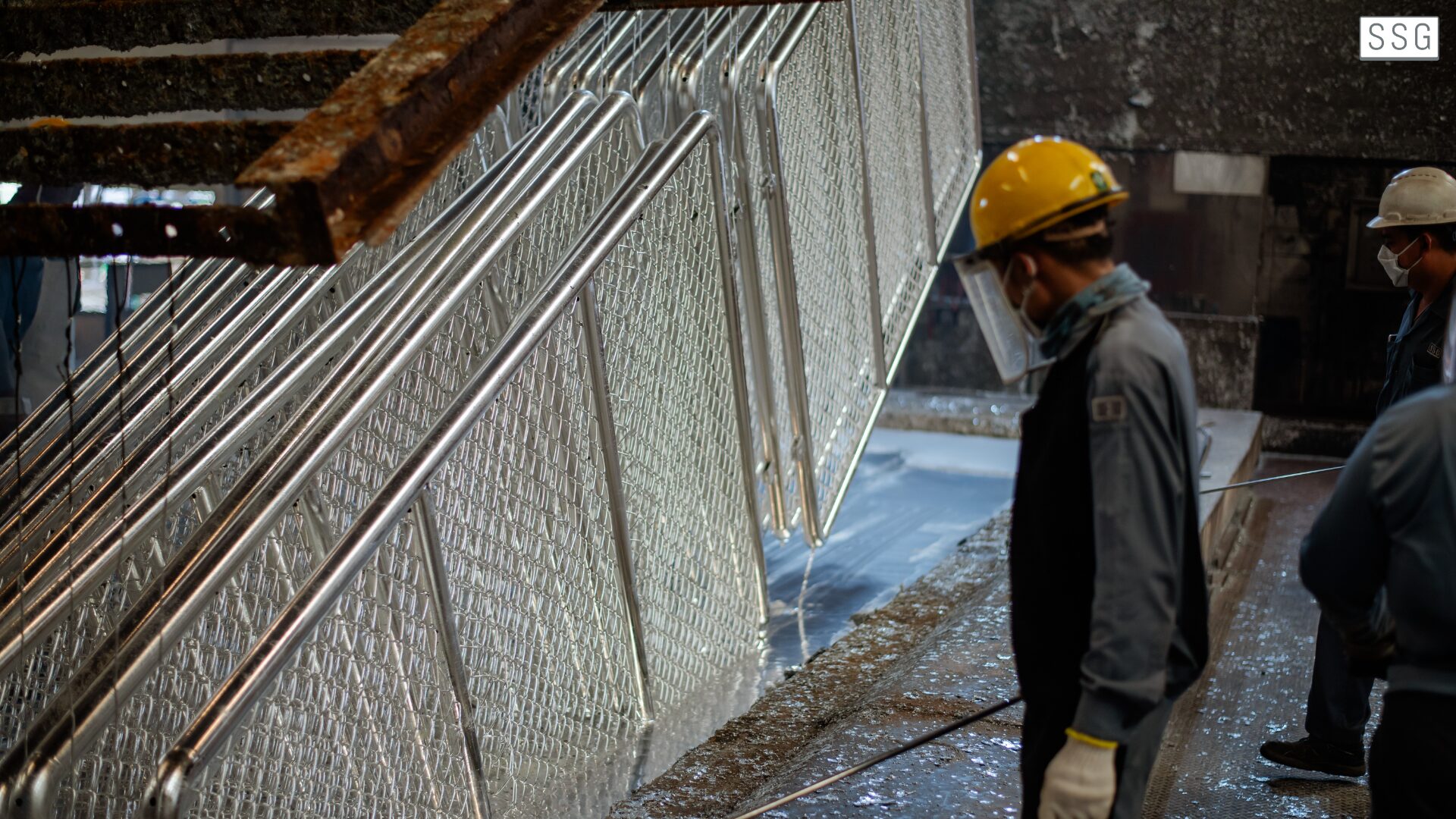

• Hot-Dip Galvanized (HDG) steel involves taking a pre-formed or fully assembled steel object (like a steel grate or a large structure) and dipping it into a bath of molten zinc at a high temperature of approximately 450°C. The zinc coats the entire surface, covering both the exterior, interior, and all weld seams densely.
• Pre-Zinc steel, on the other hand, involves coating a steel sheet with zinc while it is still in a coil at the steel mill. Only after this coating is applied is the steel cut, folded, or welded into shape. This subsequent processing leaves the cut edges or weld points without zinc protection.




Which Offers Superior Rust Resistance?

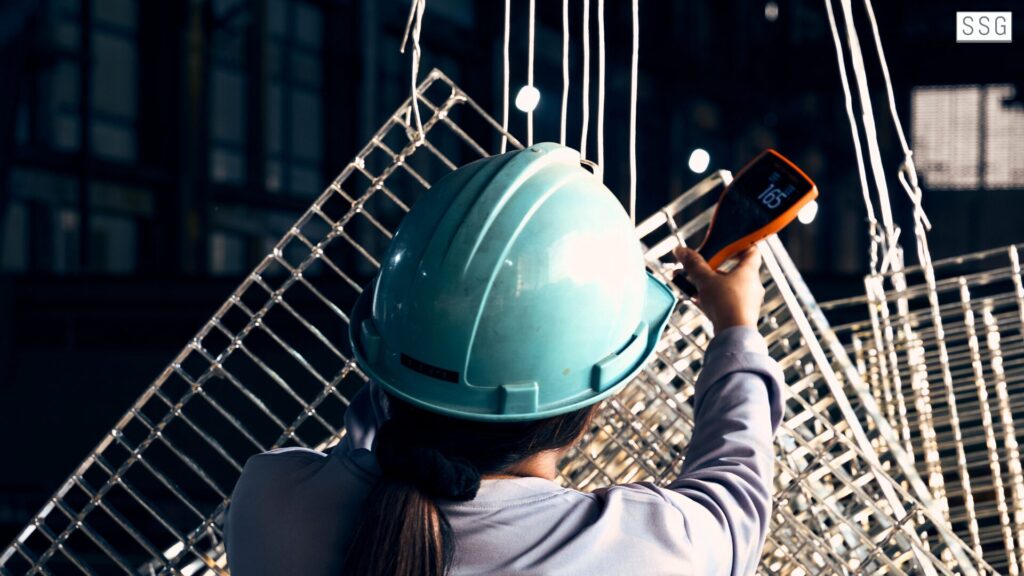

The critical difference lies in “coating thickness”. Typically, Pre-Zinc steel has a much thinner layer of zinc coating (around 10-20 microns). In contrast, Hot-Dip Galvanized (HDG) steel has a starting thickness of 65-100+ microns (in accordance with the ASTM A123 standard).

This means Hot-Dip Galvanized steel can withstand severe weather conditions, such as areas near the sea or areas with high humidity, for several decades. Pre-Zinc steel, however, may begin to show rust along weld seams or cut edges within just a few years.

Weld Seams: The Achilles’ Heel of Rust Protection

If you are commissioning steel grates or structures that require welding and assembly, Hot-Dip Galvanized is the correct answer. Because the dipping occurs after all welding is complete, the zinc covers all the weld seams entirely.

Conversely, when Pre-Zinc steel is welded, the intense heat burns away the zinc layer in that specific area. This turns the weld seam into a “weak point” where rust will first begin its attack. Even if a rust-inhibiting paint is applied over it afterwards, the performance does not compare to hot-dip coating.

Long-Term Cost-Effectiveness

Many people choose Pre-Zinc steel because its “price is lower” at the initial time of purchase. However, when viewed over the long term, spanning 10-20 years, Hot-Dip Galvanized steel is often the more cost-effective choice.

• Pre-Zinc: May require maintenance, rust removal, or repainting every 3-5 years.
• Hot-Dip Galvanized: Requires almost no maintenance throughout its entire service life.

Which Type is Suitable for Which Application?
